CNC machining center bed milling machine SHW UFZ 6 S

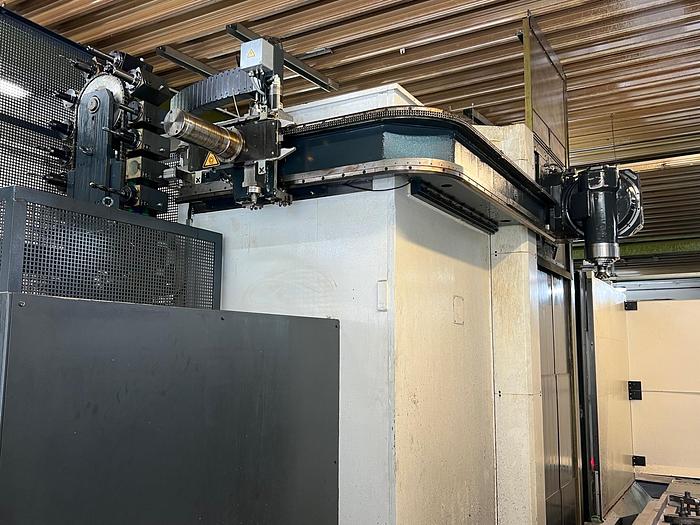

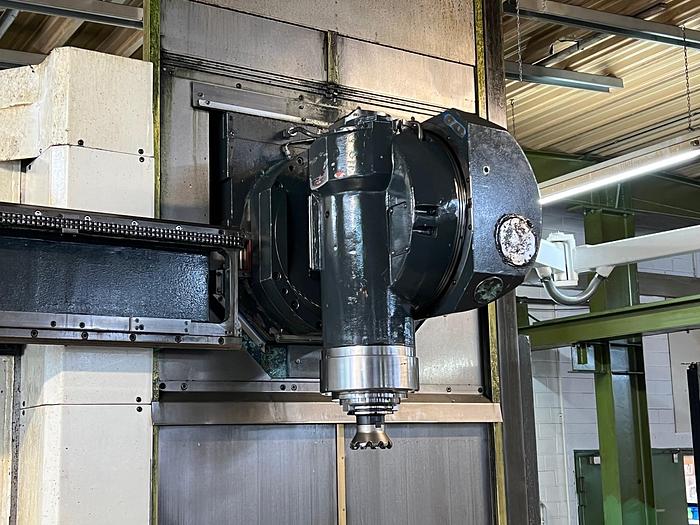

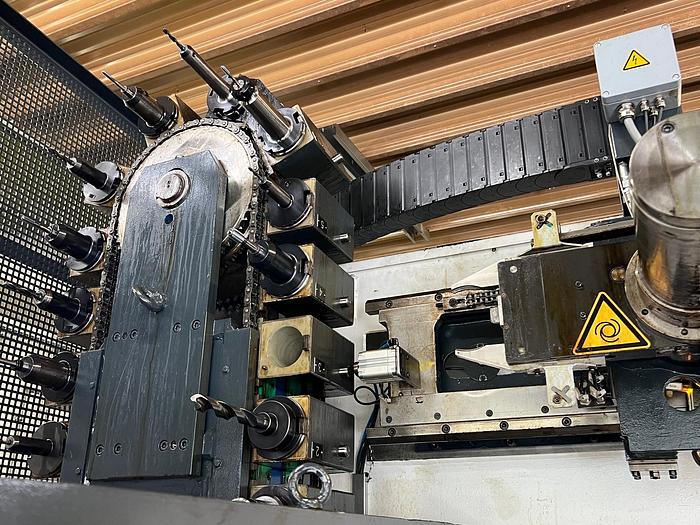

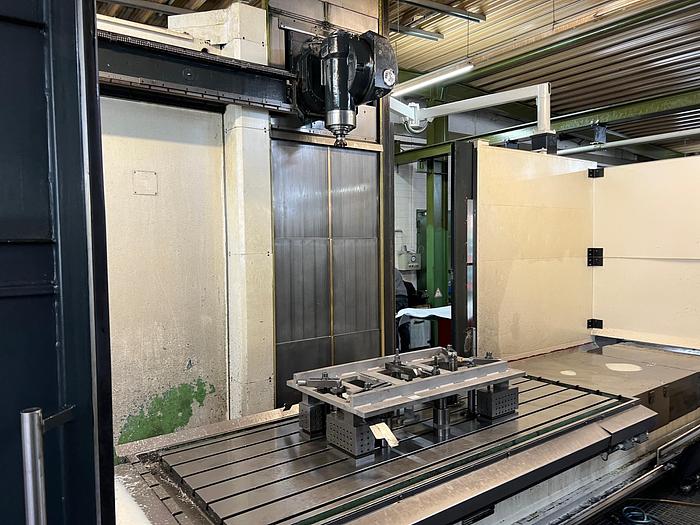

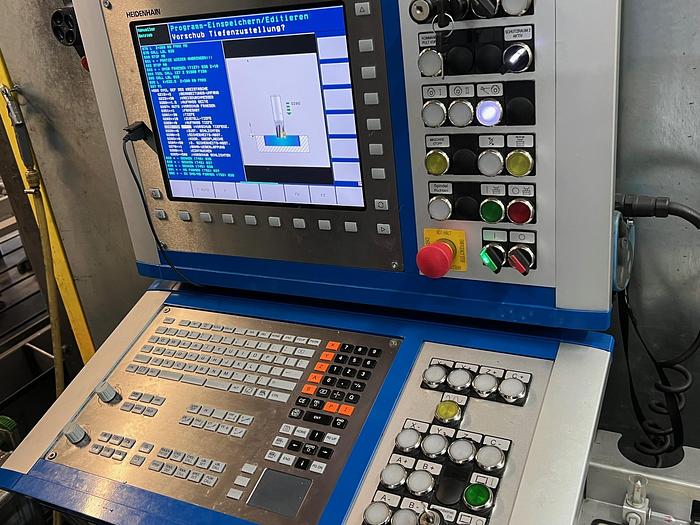

CNC machining center bed milling machine SHW UFZ 6 S Year of construction 1991 / Retrofit 2018 CNC control HEIDENHAIN iTNC 530 Travel • X axis (bed): 3,000 mm • Y-axis (vertical): 2,100 mm • Z-axis (headstock): 1,500 mm table assembly • Table with clamping area 3,000 x 1,200 mm - Clamping area 3,000 x 1,200 mm - Travel X = 3,000 mm Milling head (FK): • Internal cooling 20 bar, form A (through the center of the spindle) • Shower ring • Spindle taper SK 50, DIN 69871 • Pan range 180 x 1 degree • NC positioning axis, distance measurement using absolute encoders (ROD) * FK swiveling via main spindle motor • Oriented spindle stop • Milling head swivel range: 270 x 1 degree • Speed range: 25 – 3200 rpm Automatic tool changer • Magazine for 45 tools • Radio probe M+H Electric: • New control Heidenhain HSC iTNC 530 * New electrical documentation • New wiring • New command panel in ergonomic design * Electric handwheel • Completely new control cabinet, new air conditioning unit • New axis drives make Siemens, converter make Heidenhain • New main locker (drive make Siemens, converter make Heidenhain
