Gear shaping machine LIEBHERR LS 120
No longer available
Gear shaping machine LIEBHERR LS 120
Location:Schwäbisch Gmünd, Germany
Description
Gear shaping machine
Liebherr LS 120
Year of manufacture 2004

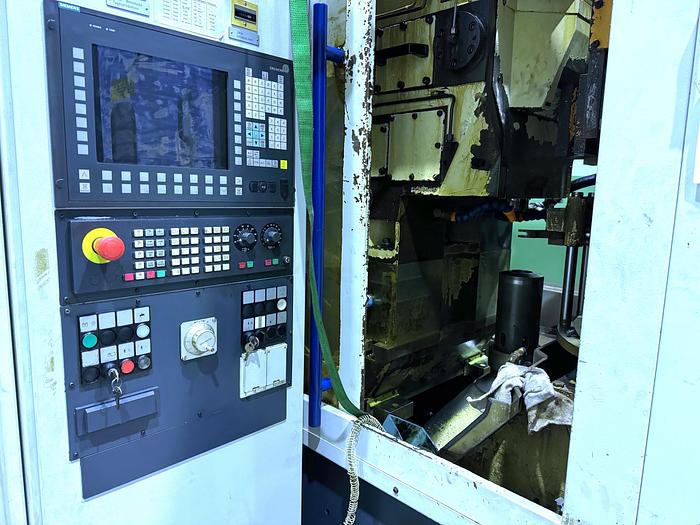

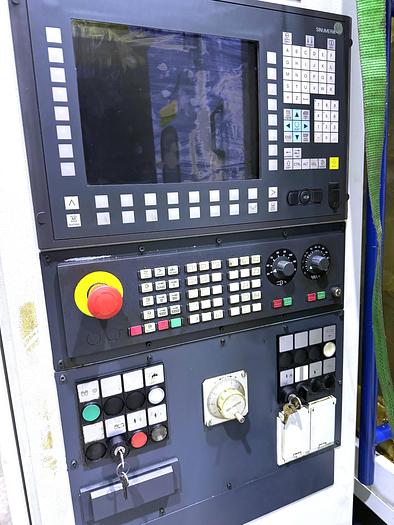

Siemens Sinumerik control
Technical data
Table diameter 145 mm
Table bore 80 mm
Max. table speed 150 rpm
Max. workpiece outside diameter 120 mm

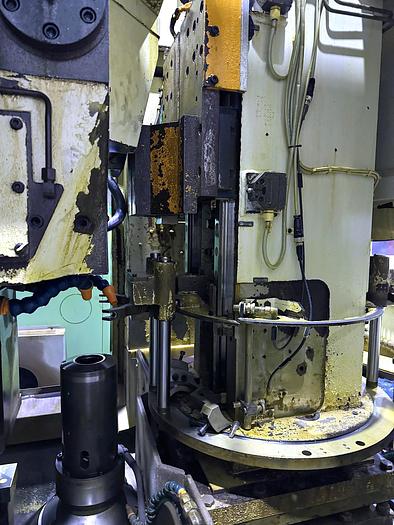

Shaping head
Max. normal module 5 mm
Max. helix angle 45 degrees
Min. stroke rate 250 DH/min
Max. stroke rate 1500 DH/min
Min. shaping spindle speed 0.0076 rpm
Max. shaping spindle speed 30 rpm
Drive power stroke drive 17 kW
Stroke position adjustment range 70 mm
Max. stroke length 55 mm
Operating voltage 400 V
Operating frequency 50 Hz
Control voltage 24 V DC
Total weight 8 tons
Specifications
| Year | 2004 |
| Condition | Used |
