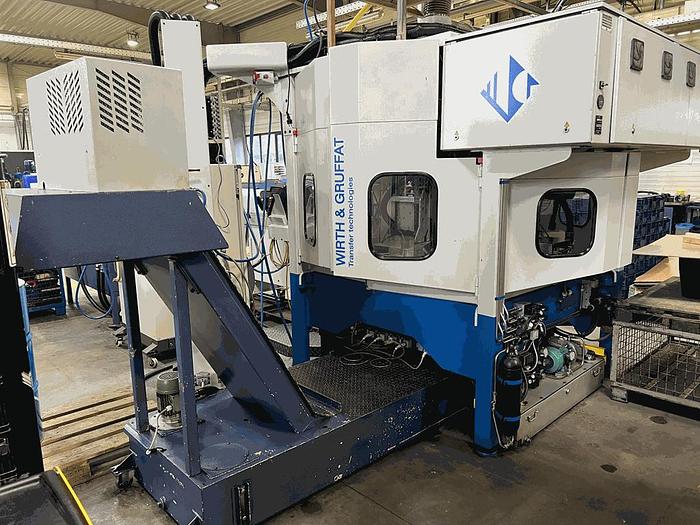

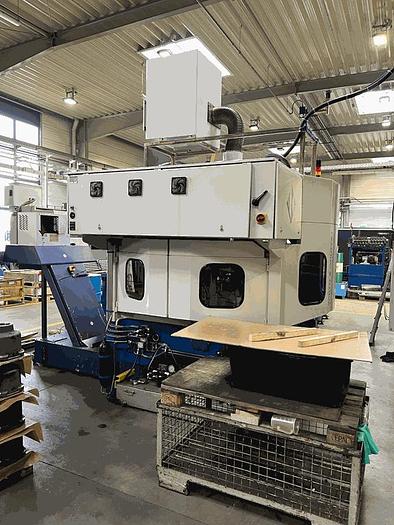

CNC rotary transfer machine Wirth & Gruffat C128
No longer available
CNC rotary transfer machine Wirth & Gruffat C128
Location:Schwäbisch Gmünd, Germany
Description
CNC rotary transfer machine
Wirth & Gruffat C128
Year of construction 2008

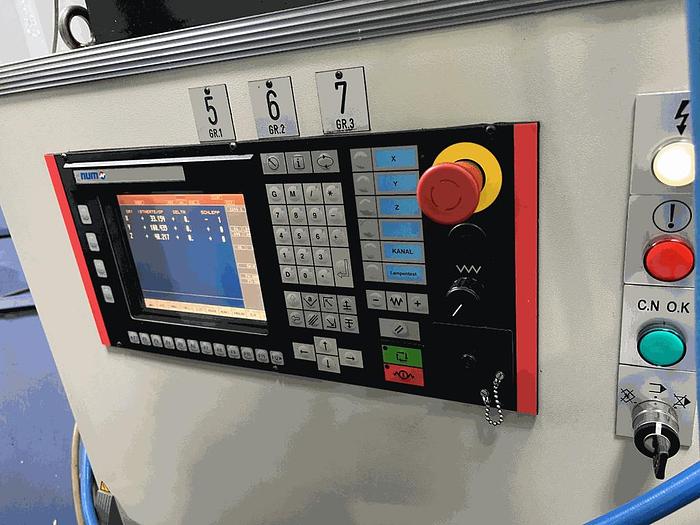

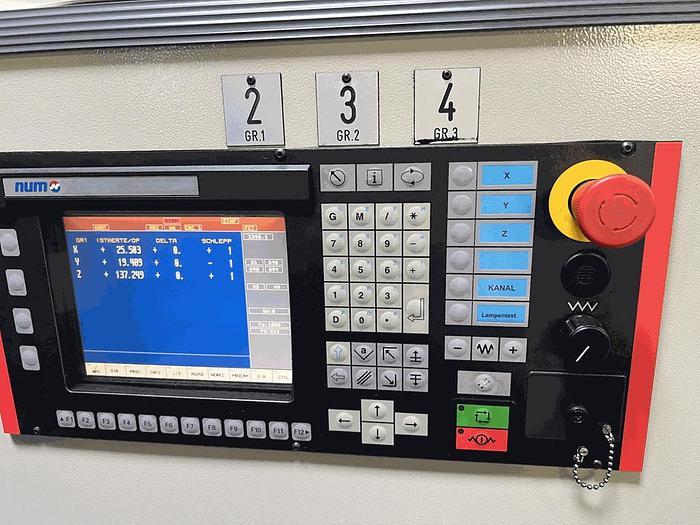

Machine control AXUM Power P2
PLC control Simatic S7-300 CPU 313-C
with a Boss 551 ER type 32N bar feeder
1.1 Dimensions and weight
Footprint with doors open 3210x3402 mm
Storage space for transport 2436x2260 mm
Height 2190mm
Weight without processing material 1020 kg
Weight with processing material 1800 kg
Sprinkler tank weight without oil1 approximately 135 kg
1.2 Tolerances
Indexing tolerances on both levels +-/ 0.005 mm
1.3 Cycle time
Total rotation time of the turret: 0.6 - 0.8 sec.
(clamping, rotation, indexing)
Cycle time: depending on the part to be processed
Specifications
Year | 2008 |
Condition | Used |
